Forecasting Time Series - Quick Start

Via a simple fit() call, AutoGluon can train and tune

• simple forecasting models (e.g., ARIMA, ETS, Theta),

• powerful deep learning models (e.g., DeepAR, Temporal Fusion Transformer),

• tree-based models (e.g., XGBoost, CatBoost, LightGBM),

• an ensemble that combines predictions of other models

to produce multi-step ahead probabilistic forecasts for univariate time series data.

This tutorial demonstrates how to quickly start using AutoGluon to generate hourly forecasts for the M4 forecasting competition dataset.

Loading time series data as a TimeSeriesDataFrame

First, we import some required modules

import pandas as pd
from autogluon.timeseries import TimeSeriesDataFrame, TimeSeriesPredictor

To use autogluon.timeseries, we will only need the following two classes:

• TimeSeriesDataFrame stores a dataset consisting of multiple time series.

• TimeSeriesPredictor takes care of fitting, tuning and selecting the best forecasting models, as well as generating new forecasts.

We load a subset of the M4 hourly dataset as a pandas.DataFrame

df = pd.read_csv("https://autogluon.s3.amazonaws.com/datasets/timeseries/m4_hourly_subset/train.csv")
df.head()

	item_id	timestamp	target
0	H1	1750-01-01 00:00:00	605.0
1	H1	1750-01-01 01:00:00	586.0
2	H1	1750-01-01 02:00:00	586.0
3	H1	1750-01-01 03:00:00	559.0
4	H1	1750-01-01 04:00:00	511.0

AutoGluon expects time series data in long format. Each row of the data frame contains a single observation (timestep) of a single time series represented by

• unique ID of the time series ("item_id") as int or str

• timestamp of the observation ("timestamp") as a pandas.Timestamp or compatible format

• numeric value of the time series ("target")

The raw dataset should always follow this format with at least three columns for unique ID, timestamp, and target value, but the names of these columns can be arbitrary. It is important, however, that we provide the names of the columns when constructing a TimeSeriesDataFrame that is used by AutoGluon. AutoGluon will raise an exception if the data doesn’t match the expected format.

train_data = TimeSeriesDataFrame.from_data_frame(
    df,
    id_column="item_id",
    timestamp_column="timestamp"
)
train_data.head()

		target
item_id	timestamp
H1	1750-01-01 00:00:00	605.0
	1750-01-01 01:00:00	586.0
	1750-01-01 02:00:00	586.0
	1750-01-01 03:00:00	559.0
	1750-01-01 04:00:00	511.0

We refer to each individual time series stored in a TimeSeriesDataFrame as an item. For example, items might correspond to different products in demand forecasting, or to different stocks in financial datasets. This setting is also referred to as a panel of time series. Note that this is not the same as multivariate forecasting — AutoGluon generates forecasts for each time series individually, without modeling interactions between different items (time series).

TimeSeriesDataFrame inherits from pandas.DataFrame, so all attributes and methods of pandas.DataFrame are available in a TimeSeriesDataFrame. It also provides other utility functions, such as loaders for different data formats (see autogluon.timeseries.TimeSeriesDataFrame for details).

Training time series models with TimeSeriesPredictor.fit

To forecast future values of the time series, we need to create a TimeSeriesPredictor object.

Models in autogluon.timeseries forecast time series multiple steps into the future. We choose the number of these steps — the prediction length (also known as the forecast horizon) — depending on our task. For example, our dataset contains time series measured at hourly frequency, so we set prediction_length = 48 to train models that forecast up to 48 hours into the future.

We instruct AutoGluon to save trained models in the folder ./autogluon-m4-hourly. We also specify that AutoGluon should rank models according to symmetric mean absolute percentage error (sMAPE), and that data that we want to forecast is stored in the column "target" of the TimeSeriesDataFrame.

predictor = TimeSeriesPredictor(
    prediction_length=48,
    path="autogluon-m4-hourly",
    target="target",
    eval_metric="sMAPE",
)

predictor.fit(
    train_data,
    presets="medium_quality",
    time_limit=600,
)

================ TimeSeriesPredictor ================
TimeSeriesPredictor.fit() called
Setting presets to: medium_quality
Fitting with arguments:
{'enable_ensemble': True,
 'evaluation_metric': 'sMAPE',
 'hyperparameter_tune_kwargs': None,
 'hyperparameters': 'medium_quality',
 'prediction_length': 48,
 'random_seed': None,
 'target': 'target',
 'time_limit': 600}
Provided training data set with 148060 rows, 200 items (item = single time series). Average time series length is 740.3.
Training artifacts will be saved to: /home/ci/autogluon/docs/_build/eval/tutorials/timeseries/autogluon-m4-hourly
=====================================================
AutoGluon will save models to autogluon-m4-hourly/
AutoGluon will gauge predictive performance using evaluation metric: 'sMAPE'
    This metric's sign has been flipped to adhere to being 'higher is better'. The reported score can be multiplied by -1 to get the metric value.

Provided dataset contains following columns:
    target:           'target'
tuning_data is None. Will use the last prediction_length = 48 time steps of each time series as a hold-out validation set.

Starting training. Start time is 2023-02-04 01:00:39
Models that will be trained: ['Naive', 'SeasonalNaive', 'ETS', 'Theta', 'ARIMA', 'AutoETS', 'AutoGluonTabular', 'DeepAR']
Training timeseries model Naive. Training for up to 599.88s of the 599.88s of remaining time.
    -0.4341       = Validation score (-sMAPE)
    0.00    s     = Training runtime
    5.98    s     = Validation (prediction) runtime
Training timeseries model SeasonalNaive. Training for up to 593.88s of the 593.88s of remaining time.
    -0.1686       = Validation score (-sMAPE)
    0.00    s     = Training runtime
    0.41    s     = Validation (prediction) runtime
Training timeseries model ETS. Training for up to 593.46s of the 593.46s of remaining time.
    -0.2700       = Validation score (-sMAPE)
    0.00    s     = Training runtime
    36.33   s     = Validation (prediction) runtime
Training timeseries model Theta. Training for up to 557.12s of the 557.12s of remaining time.
    -0.2236       = Validation score (-sMAPE)
    0.00    s     = Training runtime
    16.91   s     = Validation (prediction) runtime
Training timeseries model ARIMA. Training for up to 540.19s of the 540.19s of remaining time.
    -0.5269       = Validation score (-sMAPE)
    0.00    s     = Training runtime
    20.52   s     = Validation (prediction) runtime
Training timeseries model AutoETS. Training for up to 519.65s of the 519.65s of remaining time.
    -0.2381       = Validation score (-sMAPE)
    0.00    s     = Training runtime
    119.62  s     = Validation (prediction) runtime
Training timeseries model AutoGluonTabular. Training for up to 400.02s of the 400.02s of remaining time.
    -0.1089       = Validation score (-sMAPE)
    49.16   s     = Training runtime
    4.01    s     = Validation (prediction) runtime
Training timeseries model DeepAR. Training for up to 346.85s of the 346.85s of remaining time.
    -0.1405       = Validation score (-sMAPE)
    110.25  s     = Training runtime
    2.93    s     = Validation (prediction) runtime
Fitting simple weighted ensemble.
    -0.1077       = Validation score (-sMAPE)
    8.52    s     = Training runtime
    12.92   s     = Validation (prediction) runtime
Training complete. Models trained: ['Naive', 'SeasonalNaive', 'ETS', 'Theta', 'ARIMA', 'AutoETS', 'AutoGluonTabular', 'DeepAR', 'WeightedEnsemble']
Total runtime: 382.51 s
Best model: WeightedEnsemble
Best model score: -0.1077

<autogluon.timeseries.predictor.TimeSeriesPredictor at 0x7fbef6aa3940>

Here we used the "medium_quality" presets and limited the training time to 10 minutes (600 seconds). The presets define which models AutoGluon will try to fit. For medium_quality presets, these are simple baselines (Naive, SeasonalNaive), statistical models (ARIMA, ETS, Theta), tree-based models XGBoost, LightGBM and CatBoost wrapped by AutoGluonTabular, a deep learning model DeepAR, and a weighted ensemble combining these. Other available presets for TimeSeriesPredictor are "fast_training", "high_quality" and "best_quality". Higher quality presets will usually produce more accurate forecasts but take longer to train and may produce less computationally efficient models.

Inside fit(), AutoGluon will train as many models as possible within the given time limit. Trained models are then ranked based on their performance on an internal validation set. By default, this validation set is constructed by holding out the last prediction_length timesteps of each time series in train_data.

Generating forecasts with TimeSeriesPredictor.predict

We can now use the fitted TimeSeriesPredictor to forecast the future time series values. By default, AutoGluon will make forecasts using the model that had the best score on the internal validation set. The forecast always includes predictions for the next prediction_length timesteps, starting from the end of each time series in train_data.

predictions = predictor.predict(train_data)
predictions.head()

Global seed set to 123
Model not specified in predict, will default to the model with the best validation score: WeightedEnsemble

		mean	0.1	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9
item_id	timestamp
H1	1750-01-30 04:00:00	656.114372	585.443149	619.846842	637.488263	648.272016	656.499391	664.142341	673.257205	687.407885	719.433649
	1750-01-30 05:00:00	586.323865	515.876737	550.381785	567.859066	578.617251	586.689677	594.257317	603.358807	617.538712	649.750630
	1750-01-30 06:00:00	549.195173	477.522066	512.200689	530.092362	541.106824	549.451446	557.333342	566.699517	581.117846	613.746183
	1750-01-30 07:00:00	512.129297	440.691317	475.142323	493.083844	504.056815	512.365382	520.295670	529.671247	543.847530	576.816137
	1750-01-30 08:00:00	486.210995	414.201189	448.709973	466.497031	477.746095	486.078310	494.280166	504.023036	518.548270	551.628344

AutoGluon produces a probabilistic forecast: in addition to predicting the mean (expected value) of the time series in the future, models also provide the quantiles of the forecast distribution. The quantile forecasts give us an idea about the range of possible outcomes. For example, if the "0.1" quantile is equal to 500.0, it means that the model predicts a 10% chance that the target value will be below 500.0.

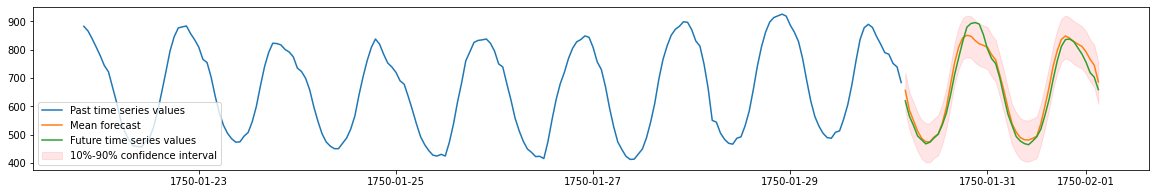

We will now visualize the forecast and the actually observed values for one of the time series in the dataset. We plot the mean forecast, as well as the 10% and 90% quantiles to show the range of potential outcomes.

import matplotlib.pyplot as plt

# TimeSeriesDataFrame can also be loaded directly from a file
test_data = TimeSeriesDataFrame.from_path("https://autogluon.s3.amazonaws.com/datasets/timeseries/m4_hourly_subset/test.csv")

plt.figure(figsize=(20, 3))

item_id = "H1"
y_past = train_data.loc[item_id]["target"]
y_pred = predictions.loc[item_id]
y_test = test_data.loc[item_id]["target"][-48:]

plt.plot(y_past[-200:], label="Past time series values")
plt.plot(y_pred["mean"], label="Mean forecast")
plt.plot(y_test, label="Future time series values")

plt.fill_between(
    y_pred.index, y_pred["0.1"], y_pred["0.9"], color="red", alpha=0.1, label=f"10%-90% confidence interval"
)
plt.legend();

Loaded data from: https://autogluon.s3.amazonaws.com/datasets/timeseries/m4_hourly_subset/test.csv | Columns = 3 / 3 | Rows = 157660 -> 157660

Evaluating the performance of different models

We can view the performance of each model AutoGluon has trained via the leaderboard() method. We provide the test data set to the leaderboard function to see how well our fitted models are doing on the unseen test data. The leaderboard also includes the validation scores computed on the internal validation dataset.

In AutoGluon leaderboards, higher scores always correspond to better predictive performance. Therefore our sMAPE scores are multiplied by -1, such that higher “negative sMAPE”s correspond to more accurate forecasts.

# The test score is computed using the last
# prediction_length=48 timesteps of each time series in test_data
predictor.leaderboard(test_data, silent=True)

Additional data provided, testing on additional data. Resulting leaderboard will be sorted according to test score (score_test).

	model	score_test	score_val	pred_time_test	pred_time_val	fit_time_marginal	fit_order
0	WeightedEnsemble	-0.103661	-0.107725	6.891848	12.922808	8.522340	9
1	AutoGluonTabular	-0.105318	-0.108919	4.383806	4.008490	49.155455	7
2	SeasonalNaive	-0.119063	-0.168566	0.675475	0.412113	0.002674	2
3	DeepAR	-0.155630	-0.140511	2.741418	2.930491	110.253879	8
4	Theta	-0.194352	-0.223630	17.686495	16.914176	0.001509	4
5	AutoETS	-0.195432	-0.238137	124.697685	119.621259	0.001485	6
6	ETS	-0.217874	-0.269993	37.479012	36.326315	0.001464	3
7	Naive	-0.453291	-0.434068	0.184462	5.983827	0.003098	1
8	ARIMA	-0.518139	-0.526885	21.852686	20.521975	0.001479	5

Summary

We used autogluon.timeseries to make probabilistic multi-step forecasts on the M4 Hourly dataset. Check out Forecasting Time Series - In Depth to learn about the advanced capabilities of AutoGluon for time series forecasting.
