Object Detection - Quick Start

Object detection is the process of identifying and localizing objects in an image and is an important task in computer vision. Follow this tutorial to learn how to use AutoGluon for object detection.

Tip: If you are new to AutoGluon, review Image Classification - Quick Start first to learn the basics of the AutoGluon API.

Our goal is to detect motorbike in images by YOLOv3 model. A tiny dataset is collected from VOC dataset, which only contains the motorbike category. The model pretrained on the COCO dataset is used to fine-tune our small dataset. With the help of AutoGluon, we are able to try many models with different hyperparameters automatically, and return the best one as our final model.

To start, import autogluon.vision and ObjectDetection module as your task:

import autogluon.core as ag
from autogluon.vision import ObjectDetection as task

Tiny_motorbike Dataset

We collect a toy dataset for detecting motorbikes in images. From the VOC dataset, images are randomly selected for training, validation, and testing - 120 images for training, 50 images for validation, and 50 for testing. This tiny dataset follows the same format as VOC.

Using the commands below, we can download this dataset, which is only 23M. The variable root specifies the path to store the dataset in. The name of unzipped folder is called tiny_motorbike.

root = './'
filename_zip = ag.download('https://autogluon.s3.amazonaws.com/datasets/tiny_motorbike.zip',
                        path=root)
filename = ag.unzip(filename_zip, root=root)
21273KB [00:00, 66274.65KB/s]

When we retrieve the dataset, we can create a dataset instance with its path and classes if it is a custom dataset.

import os
data_root = os.path.join(root, filename)
dataset_train = task.Dataset(data_root, classes=('motorbike',))

Fit Models by AutoGluon

In this section, we demonstrate how to apply AutoGluon to fit our detection models. We use mobilenet as the backbone for the YOLOv3 model. Two different learning rates are used to fine-tune the network. The best model is the one that obtains the best performance on the validation dataset. You can also try using more networks and hyperparameters to create a larger searching space.

We fit a classifier using AutoGluon as follows. In each experiment (one trial in our searching space), we train the model for 30 epochs.

time_limits = 5*60*60  # 5 hours
epochs = 30
detector = task.fit(dataset_train,
                    num_trials=2,
                    epochs=epochs,
                    lr=ag.Categorical(5e-4, 1e-4),
                    ngpus_per_trial=1,
                    time_limits=time_limits)
scheduler: FIFOScheduler(
DistributedResourceManager{
(Remote: Remote REMOTE_ID: 0,
    <Remote: 'inproc://172.31.35.213/13329/1' processes=1 threads=8, memory=33.24 GB>, Resource: NodeResourceManager(8 CPUs, 1 GPUs))
})
HBox(children=(HTML(value=''), FloatProgress(value=0.0, max=2.0), HTML(value='')))
INFO:root:{'meta_arch': 'yolo3', 'dataset': <autogluon.vision.object_detection.dataset.voc.CustomVOCDetection object at 0x7fceb49a6c90>, 'net': 'mobilenet1.0', 'lr': 0.0005, 'loss': SoftmaxCrossEntropyLoss(batch_axis=0, w=None), 'num_gpus': 1, 'batch_size': 16, 'split_ratio': 0.8, 'epochs': 30, 'num_workers': 8, 'hybridize': True, 'verbose': False, 'final_fit': False, 'seed': 223, 'data_shape': 416, 'start_epoch': 0, 'transfer': 'coco', 'lr_mode': 'step', 'lr_decay': 0.1, 'lr_decay_period': 0, 'lr_decay_epoch': '160,180', 'warmup_lr': 0.0, 'warmup_epochs': 2, 'warmup_iters': 1000, 'warmup_factor': 0.3333333333333333, 'momentum': 0.9, 'wd': 0.0005, 'log_interval': 100, 'save_prefix': 'yolo3_mobilenet1.0_custom', 'save_interval': 10, 'val_interval': 1, 'num_samples': -1, 'no_random_shape': False, 'no_wd': False, 'mixup': False, 'no_mixup_epochs': 20, 'label_smooth': False, 'resume': '', 'syncbn': False, 'reuse_pred_weights': True, 'task_id': 0}
INFO:root:[Epoch 0] Training cost: 7.106, ObjLoss=1358.454,BoxCenterLoss=3.919,BoxScaleLoss=2.720,ClassLoss=1.032
INFO:root:[Epoch 0] Validation: motorbike=0.0 mAP=0.0
INFO:root:[Epoch 1] Training cost: 5.514, ObjLoss=39.255,BoxCenterLoss=3.957,BoxScaleLoss=1.642,ClassLoss=0.805
INFO:root:[Epoch 1] Validation: motorbike=0.44603607224496983 mAP=0.44603607224496983
INFO:root:[Epoch 2] Training cost: 3.867, ObjLoss=31.065,BoxCenterLoss=3.659,BoxScaleLoss=1.319,ClassLoss=0.777
INFO:root:[Epoch 2] Validation: motorbike=0.04957947770930768 mAP=0.04957947770930768
INFO:root:[Epoch 3] Training cost: 3.867, ObjLoss=35.305,BoxCenterLoss=4.082,BoxScaleLoss=1.308,ClassLoss=0.797
INFO:root:[Epoch 3] Validation: motorbike=0.6182293139738779 mAP=0.6182293139738779
INFO:root:[Epoch 4] Training cost: 3.890, ObjLoss=32.265,BoxCenterLoss=3.770,BoxScaleLoss=1.037,ClassLoss=0.703
INFO:root:[Epoch 4] Validation: motorbike=0.6464725313371348 mAP=0.6464725313371348
INFO:root:[Epoch 5] Training cost: 5.672, ObjLoss=12.535,BoxCenterLoss=3.815,BoxScaleLoss=1.176,ClassLoss=0.546
INFO:root:[Epoch 5] Validation: motorbike=0.717876507357817 mAP=0.717876507357817
INFO:root:[Epoch 6] Training cost: 5.774, ObjLoss=12.610,BoxCenterLoss=3.704,BoxScaleLoss=0.989,ClassLoss=0.462
INFO:root:[Epoch 6] Validation: motorbike=0.757377347541282 mAP=0.757377347541282
INFO:root:[Epoch 7] Training cost: 6.937, ObjLoss=10.753,BoxCenterLoss=3.849,BoxScaleLoss=1.017,ClassLoss=0.428
INFO:root:[Epoch 7] Validation: motorbike=0.823455710955711 mAP=0.823455710955711
INFO:root:[Epoch 8] Training cost: 5.848, ObjLoss=8.181,BoxCenterLoss=3.675,BoxScaleLoss=0.939,ClassLoss=0.358
INFO:root:[Epoch 8] Validation: motorbike=0.7898042189324966 mAP=0.7898042189324966
INFO:root:[Epoch 9] Training cost: 4.952, ObjLoss=7.364,BoxCenterLoss=3.954,BoxScaleLoss=1.010,ClassLoss=0.440
INFO:root:[Epoch 9] Validation: motorbike=0.853459520126187 mAP=0.853459520126187
INFO:root:[Epoch 10] Training cost: 5.070, ObjLoss=7.179,BoxCenterLoss=3.615,BoxScaleLoss=0.877,ClassLoss=0.356
INFO:root:[Epoch 10] Validation: motorbike=0.8415839428770464 mAP=0.8415839428770464
INFO:root:[Epoch 11] Training cost: 3.575, ObjLoss=11.616,BoxCenterLoss=3.640,BoxScaleLoss=0.970,ClassLoss=0.385
INFO:root:[Epoch 11] Validation: motorbike=0.8411259934770908 mAP=0.8411259934770908
INFO:root:[Epoch 12] Training cost: 7.036, ObjLoss=10.896,BoxCenterLoss=3.804,BoxScaleLoss=1.014,ClassLoss=0.295
INFO:root:[Epoch 12] Validation: motorbike=0.8073952517654488 mAP=0.8073952517654488
INFO:root:[Epoch 13] Training cost: 3.860, ObjLoss=9.136,BoxCenterLoss=3.559,BoxScaleLoss=0.960,ClassLoss=0.331
INFO:root:[Epoch 13] Validation: motorbike=0.875990913726763 mAP=0.875990913726763
INFO:root:[Epoch 14] Training cost: 5.434, ObjLoss=6.175,BoxCenterLoss=3.622,BoxScaleLoss=0.911,ClassLoss=0.235
INFO:root:[Epoch 14] Validation: motorbike=0.8038413914245399 mAP=0.8038413914245399
INFO:root:[Epoch 15] Training cost: 5.730, ObjLoss=6.320,BoxCenterLoss=3.662,BoxScaleLoss=0.999,ClassLoss=0.275
INFO:root:[Epoch 15] Validation: motorbike=0.8376111173579529 mAP=0.8376111173579529
INFO:root:[Epoch 16] Training cost: 5.274, ObjLoss=5.820,BoxCenterLoss=3.763,BoxScaleLoss=0.846,ClassLoss=0.245
INFO:root:[Epoch 16] Validation: motorbike=0.8810039986510576 mAP=0.8810039986510576
INFO:root:[Epoch 17] Training cost: 6.999, ObjLoss=5.879,BoxCenterLoss=3.757,BoxScaleLoss=0.942,ClassLoss=0.201
INFO:root:[Epoch 17] Validation: motorbike=0.8522316951938208 mAP=0.8522316951938208
INFO:root:[Epoch 18] Training cost: 7.126, ObjLoss=5.751,BoxCenterLoss=3.752,BoxScaleLoss=0.894,ClassLoss=0.201
INFO:root:[Epoch 18] Validation: motorbike=0.80052458824219 mAP=0.80052458824219
INFO:root:[Epoch 19] Training cost: 5.386, ObjLoss=6.532,BoxCenterLoss=3.844,BoxScaleLoss=1.008,ClassLoss=0.241
INFO:root:[Epoch 19] Validation: motorbike=0.8693367238821785 mAP=0.8693367238821785
INFO:root:[Epoch 20] Training cost: 4.493, ObjLoss=5.704,BoxCenterLoss=3.893,BoxScaleLoss=0.964,ClassLoss=0.300
INFO:root:[Epoch 20] Validation: motorbike=0.7926055574426344 mAP=0.7926055574426344
INFO:root:[Epoch 21] Training cost: 7.234, ObjLoss=6.071,BoxCenterLoss=3.828,BoxScaleLoss=0.927,ClassLoss=0.199
INFO:root:[Epoch 21] Validation: motorbike=0.836043355608573 mAP=0.836043355608573
INFO:root:[Epoch 22] Training cost: 5.283, ObjLoss=5.306,BoxCenterLoss=3.622,BoxScaleLoss=0.880,ClassLoss=0.234
INFO:root:[Epoch 22] Validation: motorbike=0.8514525220407575 mAP=0.8514525220407575
INFO:root:[Epoch 23] Training cost: 5.315, ObjLoss=5.075,BoxCenterLoss=3.479,BoxScaleLoss=0.866,ClassLoss=0.212
INFO:root:[Epoch 23] Validation: motorbike=0.8568176775073327 mAP=0.8568176775073327
INFO:root:[Epoch 24] Training cost: 5.173, ObjLoss=5.307,BoxCenterLoss=3.729,BoxScaleLoss=0.985,ClassLoss=0.228
INFO:root:[Epoch 24] Validation: motorbike=0.8310404192598274 mAP=0.8310404192598274
INFO:root:[Epoch 25] Training cost: 7.116, ObjLoss=5.696,BoxCenterLoss=3.563,BoxScaleLoss=0.939,ClassLoss=0.137
INFO:root:[Epoch 25] Validation: motorbike=0.8228545192181556 mAP=0.8228545192181556
INFO:root:[Epoch 26] Training cost: 3.360, ObjLoss=8.115,BoxCenterLoss=3.844,BoxScaleLoss=1.148,ClassLoss=0.277
INFO:root:[Epoch 26] Validation: motorbike=0.5709956709956711 mAP=0.5709956709956711
INFO:root:[Epoch 27] Training cost: 7.421, ObjLoss=6.082,BoxCenterLoss=3.461,BoxScaleLoss=0.932,ClassLoss=0.127
INFO:root:[Epoch 27] Validation: motorbike=0.8291199883682892 mAP=0.8291199883682892
INFO:root:[Epoch 28] Training cost: 5.219, ObjLoss=5.362,BoxCenterLoss=3.509,BoxScaleLoss=0.886,ClassLoss=0.161
INFO:root:[Epoch 28] Validation: motorbike=0.8415531836584468 mAP=0.8415531836584468
INFO:root:[Epoch 29] Training cost: 5.466, ObjLoss=5.187,BoxCenterLoss=3.755,BoxScaleLoss=0.893,ClassLoss=0.196
INFO:root:[Epoch 29] Validation: motorbike=0.836625305416529 mAP=0.836625305416529
INFO:root:{'meta_arch': 'yolo3', 'dataset': <autogluon.vision.object_detection.dataset.voc.CustomVOCDetection object at 0x7fceb46bd250>, 'net': 'mobilenet1.0', 'lr': 0.0001, 'loss': SoftmaxCrossEntropyLoss(batch_axis=0, w=None), 'num_gpus': 1, 'batch_size': 16, 'split_ratio': 0.8, 'epochs': 30, 'num_workers': 8, 'hybridize': True, 'verbose': False, 'final_fit': False, 'seed': 223, 'data_shape': 416, 'start_epoch': 0, 'transfer': 'coco', 'lr_mode': 'step', 'lr_decay': 0.1, 'lr_decay_period': 0, 'lr_decay_epoch': '160,180', 'warmup_lr': 0.0, 'warmup_epochs': 2, 'warmup_iters': 1000, 'warmup_factor': 0.3333333333333333, 'momentum': 0.9, 'wd': 0.0005, 'log_interval': 100, 'save_prefix': 'yolo3_mobilenet1.0_custom', 'save_interval': 10, 'val_interval': 1, 'num_samples': -1, 'no_random_shape': False, 'no_wd': False, 'mixup': False, 'no_mixup_epochs': 20, 'label_smooth': False, 'resume': '', 'syncbn': False, 'reuse_pred_weights': True, 'task_id': 1}
INFO:root:[Epoch 0] Training cost: 7.176, ObjLoss=1467.820,BoxCenterLoss=4.083,BoxScaleLoss=3.203,ClassLoss=1.173
INFO:root:[Epoch 0] Validation: motorbike=0.0 mAP=0.0
INFO:root:[Epoch 1] Training cost: 5.510, ObjLoss=21.950,BoxCenterLoss=4.166,BoxScaleLoss=2.233,ClassLoss=0.987
INFO:root:[Epoch 1] Validation: motorbike=0.0 mAP=0.0
INFO:root:[Epoch 2] Training cost: 4.103, ObjLoss=19.569,BoxCenterLoss=3.734,BoxScaleLoss=1.708,ClassLoss=0.803
INFO:root:[Epoch 2] Validation: motorbike=0.0 mAP=0.0
INFO:root:[Epoch 3] Training cost: 3.796, ObjLoss=16.683,BoxCenterLoss=4.016,BoxScaleLoss=1.689,ClassLoss=0.794
INFO:root:[Epoch 3] Validation: motorbike=0.37842480100544623 mAP=0.37842480100544623
INFO:root:[Epoch 4] Training cost: 3.555, ObjLoss=11.954,BoxCenterLoss=3.942,BoxScaleLoss=1.607,ClassLoss=0.827
INFO:root:[Epoch 4] Validation: motorbike=0.4970966533466533 mAP=0.4970966533466533
INFO:root:[Epoch 5] Training cost: 5.698, ObjLoss=10.325,BoxCenterLoss=3.954,BoxScaleLoss=1.436,ClassLoss=0.708
INFO:root:[Epoch 5] Validation: motorbike=0.6055006928434223 mAP=0.6055006928434223
INFO:root:[Epoch 6] Training cost: 6.059, ObjLoss=8.190,BoxCenterLoss=3.697,BoxScaleLoss=1.175,ClassLoss=0.608
INFO:root:[Epoch 6] Validation: motorbike=0.6133928571428572 mAP=0.6133928571428572
INFO:root:[Epoch 7] Training cost: 7.189, ObjLoss=7.883,BoxCenterLoss=3.834,BoxScaleLoss=1.154,ClassLoss=0.592
INFO:root:[Epoch 7] Validation: motorbike=0.6080205310782448 mAP=0.6080205310782448
INFO:root:[Epoch 8] Training cost: 6.351, ObjLoss=6.616,BoxCenterLoss=3.905,BoxScaleLoss=1.065,ClassLoss=0.594
INFO:root:[Epoch 8] Validation: motorbike=0.6057279853449484 mAP=0.6057279853449484
INFO:root:[Epoch 9] Training cost: 5.059, ObjLoss=6.333,BoxCenterLoss=4.008,BoxScaleLoss=1.188,ClassLoss=0.651
INFO:root:[Epoch 9] Validation: motorbike=0.6831495250467582 mAP=0.6831495250467582
INFO:root:[Epoch 10] Training cost: 5.167, ObjLoss=6.073,BoxCenterLoss=3.856,BoxScaleLoss=1.039,ClassLoss=0.554
INFO:root:[Epoch 10] Validation: motorbike=0.7448158916383953 mAP=0.7448158916383953
INFO:root:[Epoch 11] Training cost: 3.961, ObjLoss=5.569,BoxCenterLoss=3.614,BoxScaleLoss=1.040,ClassLoss=0.564
INFO:root:[Epoch 11] Validation: motorbike=0.7137443201959331 mAP=0.7137443201959331
INFO:root:[Epoch 12] Training cost: 7.190, ObjLoss=6.635,BoxCenterLoss=3.689,BoxScaleLoss=1.080,ClassLoss=0.445
INFO:root:[Epoch 12] Validation: motorbike=0.7407399797172525 mAP=0.7407399797172525
INFO:root:[Epoch 13] Training cost: 4.433, ObjLoss=5.654,BoxCenterLoss=3.639,BoxScaleLoss=1.149,ClassLoss=0.529
INFO:root:[Epoch 13] Validation: motorbike=0.7088508505151259 mAP=0.7088508505151259
INFO:root:[Epoch 14] Training cost: 5.661, ObjLoss=5.536,BoxCenterLoss=3.833,BoxScaleLoss=1.091,ClassLoss=0.458
INFO:root:[Epoch 14] Validation: motorbike=0.7556664193470496 mAP=0.7556664193470496
INFO:root:[Epoch 15] Training cost: 5.770, ObjLoss=5.246,BoxCenterLoss=3.597,BoxScaleLoss=0.968,ClassLoss=0.414
INFO:root:[Epoch 15] Validation: motorbike=0.7562661539934267 mAP=0.7562661539934267
INFO:root:[Epoch 16] Training cost: 5.313, ObjLoss=5.273,BoxCenterLoss=3.713,BoxScaleLoss=0.917,ClassLoss=0.446
INFO:root:[Epoch 16] Validation: motorbike=0.7452079163874167 mAP=0.7452079163874167
INFO:root:[Epoch 17] Training cost: 7.212, ObjLoss=5.492,BoxCenterLoss=3.708,BoxScaleLoss=1.004,ClassLoss=0.379
INFO:root:[Epoch 17] Validation: motorbike=0.6637584637584637 mAP=0.6637584637584637
INFO:root:[Epoch 18] Training cost: 7.234, ObjLoss=5.515,BoxCenterLoss=3.700,BoxScaleLoss=0.895,ClassLoss=0.331
INFO:root:[Epoch 18] Validation: motorbike=0.723618414106219 mAP=0.723618414106219
INFO:root:[Epoch 19] Training cost: 5.639, ObjLoss=5.435,BoxCenterLoss=3.797,BoxScaleLoss=0.998,ClassLoss=0.393
INFO:root:[Epoch 19] Validation: motorbike=0.6528679653679653 mAP=0.6528679653679653
INFO:root:[Epoch 20] Training cost: 4.245, ObjLoss=5.251,BoxCenterLoss=3.653,BoxScaleLoss=0.953,ClassLoss=0.386
INFO:root:[Epoch 20] Validation: motorbike=0.6933202997719127 mAP=0.6933202997719127
INFO:root:[Epoch 21] Training cost: 7.699, ObjLoss=5.590,BoxCenterLoss=3.766,BoxScaleLoss=0.945,ClassLoss=0.325
INFO:root:[Epoch 21] Validation: motorbike=0.7454308399323061 mAP=0.7454308399323061
INFO:root:[Epoch 22] Training cost: 5.612, ObjLoss=4.576,BoxCenterLoss=3.775,BoxScaleLoss=0.887,ClassLoss=0.326
INFO:root:[Epoch 22] Validation: motorbike=0.7912551337551338 mAP=0.7912551337551338
INFO:root:[Epoch 23] Training cost: 5.640, ObjLoss=4.546,BoxCenterLoss=3.722,BoxScaleLoss=0.915,ClassLoss=0.360
INFO:root:[Epoch 23] Validation: motorbike=0.8097566415118704 mAP=0.8097566415118704
INFO:root:[Epoch 24] Training cost: 5.395, ObjLoss=4.801,BoxCenterLoss=3.663,BoxScaleLoss=0.871,ClassLoss=0.307
INFO:root:[Epoch 24] Validation: motorbike=0.8304120377175236 mAP=0.8304120377175236
INFO:root:[Epoch 25] Training cost: 7.398, ObjLoss=5.274,BoxCenterLoss=3.854,BoxScaleLoss=0.888,ClassLoss=0.285
INFO:root:[Epoch 25] Validation: motorbike=0.7901496665773562 mAP=0.7901496665773562
INFO:root:[Epoch 26] Training cost: 3.109, ObjLoss=5.108,BoxCenterLoss=3.698,BoxScaleLoss=1.002,ClassLoss=0.365
INFO:root:[Epoch 26] Validation: motorbike=0.8208913670870194 mAP=0.8208913670870194
INFO:root:[Epoch 27] Training cost: 8.020, ObjLoss=4.841,BoxCenterLoss=3.569,BoxScaleLoss=0.873,ClassLoss=0.214
INFO:root:[Epoch 27] Validation: motorbike=0.8407473948975925 mAP=0.8407473948975925
INFO:root:[Epoch 28] Training cost: 5.353, ObjLoss=4.637,BoxCenterLoss=3.818,BoxScaleLoss=0.934,ClassLoss=0.307
INFO:root:[Epoch 28] Validation: motorbike=0.7948053680757586 mAP=0.7948053680757586
INFO:root:[Epoch 29] Training cost: 5.529, ObjLoss=4.525,BoxCenterLoss=3.522,BoxScaleLoss=0.761,ClassLoss=0.261
INFO:root:[Epoch 29] Validation: motorbike=0.8654545454545456 mAP=0.8654545454545456
INFO:root:{'meta_arch': 'yolo3', 'dataset': <autogluon.vision.object_detection.dataset.voc.CustomVOCDetection object at 0x7fceb4675810>, 'net': 'mobilenet1.0', 'lr': 0.0001, 'loss': SoftmaxCrossEntropyLoss(batch_axis=0, w=None), 'num_gpus': 1, 'batch_size': 16, 'split_ratio': 0.8, 'epochs': 30, 'num_workers': 8, 'hybridize': True, 'verbose': False, 'final_fit': True, 'seed': 223, 'data_shape': 416, 'start_epoch': 0, 'transfer': 'coco', 'lr_mode': 'step', 'lr_decay': 0.1, 'lr_decay_period': 0, 'lr_decay_epoch': '160,180', 'warmup_lr': 0.0, 'warmup_epochs': 2, 'warmup_iters': 1000, 'warmup_factor': 0.3333333333333333, 'momentum': 0.9, 'wd': 0.0005, 'log_interval': 100, 'save_prefix': 'yolo3_mobilenet1.0_custom', 'save_interval': 10, 'val_interval': 1, 'num_samples': -1, 'no_random_shape': False, 'no_wd': False, 'mixup': False, 'no_mixup_epochs': 20, 'label_smooth': False, 'resume': '', 'syncbn': False, 'reuse_pred_weights': True, 'task_id': 2}
INFO:root:[Epoch 0] Training cost: 6.274, ObjLoss=712.562,BoxCenterLoss=3.758,BoxScaleLoss=2.684,ClassLoss=0.990
INFO:root:[Epoch 1] Training cost: 5.198, ObjLoss=15.033,BoxCenterLoss=3.651,BoxScaleLoss=2.038,ClassLoss=0.904
INFO:root:[Epoch 2] Training cost: 6.324, ObjLoss=13.980,BoxCenterLoss=3.885,BoxScaleLoss=1.751,ClassLoss=0.770
INFO:root:[Epoch 3] Training cost: 9.264, ObjLoss=9.382,BoxCenterLoss=3.629,BoxScaleLoss=1.487,ClassLoss=0.645
INFO:root:[Epoch 4] Training cost: 5.560, ObjLoss=8.358,BoxCenterLoss=3.747,BoxScaleLoss=1.362,ClassLoss=0.685
INFO:root:[Epoch 5] Training cost: 7.625, ObjLoss=6.944,BoxCenterLoss=3.461,BoxScaleLoss=1.218,ClassLoss=0.488
INFO:root:[Epoch 6] Training cost: 7.633, ObjLoss=6.621,BoxCenterLoss=3.591,BoxScaleLoss=1.148,ClassLoss=0.464
INFO:root:[Epoch 7] Training cost: 5.040, ObjLoss=6.148,BoxCenterLoss=3.598,BoxScaleLoss=1.167,ClassLoss=0.531
INFO:root:[Epoch 8] Training cost: 7.542, ObjLoss=6.056,BoxCenterLoss=3.633,BoxScaleLoss=1.085,ClassLoss=0.451
INFO:root:[Epoch 9] Training cost: 6.398, ObjLoss=5.272,BoxCenterLoss=3.299,BoxScaleLoss=1.011,ClassLoss=0.389
INFO:root:[Epoch 10] Training cost: 4.594, ObjLoss=5.219,BoxCenterLoss=3.439,BoxScaleLoss=1.021,ClassLoss=0.384
INFO:root:[Epoch 11] Training cost: 6.370, ObjLoss=5.250,BoxCenterLoss=3.556,BoxScaleLoss=1.080,ClassLoss=0.398
INFO:root:[Epoch 12] Training cost: 6.104, ObjLoss=5.063,BoxCenterLoss=3.560,BoxScaleLoss=0.994,ClassLoss=0.378
INFO:root:[Epoch 13] Training cost: 8.592, ObjLoss=5.499,BoxCenterLoss=3.377,BoxScaleLoss=0.951,ClassLoss=0.291
INFO:root:[Epoch 14] Training cost: 6.770, ObjLoss=4.963,BoxCenterLoss=3.609,BoxScaleLoss=0.925,ClassLoss=0.339
INFO:root:[Epoch 15] Training cost: 5.675, ObjLoss=5.261,BoxCenterLoss=3.643,BoxScaleLoss=0.974,ClassLoss=0.391
INFO:root:[Epoch 16] Training cost: 3.965, ObjLoss=4.692,BoxCenterLoss=3.362,BoxScaleLoss=0.928,ClassLoss=0.376
INFO:root:[Epoch 17] Training cost: 4.168, ObjLoss=5.091,BoxCenterLoss=3.590,BoxScaleLoss=1.013,ClassLoss=0.383
INFO:root:[Epoch 18] Training cost: 8.076, ObjLoss=5.539,BoxCenterLoss=3.511,BoxScaleLoss=1.004,ClassLoss=0.293
INFO:root:[Epoch 19] Training cost: 4.371, ObjLoss=5.188,BoxCenterLoss=3.462,BoxScaleLoss=1.027,ClassLoss=0.352
INFO:root:[Epoch 20] Training cost: 5.804, ObjLoss=4.698,BoxCenterLoss=3.492,BoxScaleLoss=0.920,ClassLoss=0.303
INFO:root:[Epoch 21] Training cost: 6.161, ObjLoss=4.452,BoxCenterLoss=3.478,BoxScaleLoss=0.918,ClassLoss=0.242
INFO:root:[Epoch 22] Training cost: 5.714, ObjLoss=4.320,BoxCenterLoss=3.377,BoxScaleLoss=0.927,ClassLoss=0.268
INFO:root:[Epoch 23] Training cost: 5.698, ObjLoss=4.507,BoxCenterLoss=3.483,BoxScaleLoss=0.889,ClassLoss=0.251
INFO:root:[Epoch 24] Training cost: 6.257, ObjLoss=4.375,BoxCenterLoss=3.377,BoxScaleLoss=0.879,ClassLoss=0.195
INFO:root:[Epoch 25] Training cost: 8.196, ObjLoss=4.459,BoxCenterLoss=3.451,BoxScaleLoss=0.803,ClassLoss=0.192
INFO:root:[Epoch 26] Training cost: 5.943, ObjLoss=4.334,BoxCenterLoss=3.467,BoxScaleLoss=0.857,ClassLoss=0.206
INFO:root:[Epoch 27] Training cost: 5.964, ObjLoss=4.255,BoxCenterLoss=3.273,BoxScaleLoss=0.837,ClassLoss=0.200
INFO:root:[Epoch 28] Training cost: 8.796, ObjLoss=4.684,BoxCenterLoss=3.332,BoxScaleLoss=0.856,ClassLoss=0.161
INFO:root:[Epoch 29] Training cost: 4.322, ObjLoss=4.642,BoxCenterLoss=3.586,BoxScaleLoss=0.924,ClassLoss=0.250

Note that num_trials=2 above is only used to speed up the tutorial. In normal practice, it is common to only use time_limits and drop num_trials.

After fitting, AutoGluon automatically returns the best model among all models in the searching space. From the output, we know the best model is the one trained with the second learning rate. To see how well the returned model performed on test dataset, call detector.evaluate().

dataset_test = task.Dataset(data_root, index_file_name='test', classes=('motorbike',))

test_map = detector.evaluate(dataset_test)
print("mAP on test dataset: {}".format(test_map[1][1]))
mAP on test dataset: 0.752336066414773

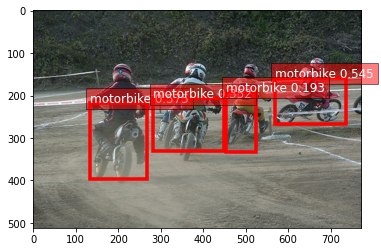

Below, we randomly select an image from test dataset and show the predicted box and probability over the origin image.

image = '000467.jpg'
image_path = os.path.join(data_root, 'JPEGImages', image)

ind, prob, loc = detector.predict(image_path)
../../_images/output_beginner_1fd7a6_11_0.png

We can also save the trained model, and use it later.

savefile = 'model.pkl'
detector.save(savefile)

from autogluon.vision import Detector
new_detector = Detector.load(savefile)
