# Demo RL Searcher¶

In this tutorial, we are going to compare RL searcher with random search in a simulation environment.

## A Toy Reward Space¶

Input Space `x = [0: 99], y = [0: 99]`. The rewards are a combination of 2 gaussians as shown in the following figure:

```import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
```

Generate the simulation rewards as a mixture of 2 gaussians:

```def gaussian(x, y, x0, y0, xalpha, yalpha, A):
return A * np.exp( -((x-x0)/xalpha)**2 -((y-y0)/yalpha)**2)

x, y = np.linspace(0, 99, 100), np.linspace(0, 99, 100)
X, Y = np.meshgrid(x, y)

Z = np.zeros(X.shape)
ps = [(20, 70, 35, 40, 1),
(80, 40, 20, 20, 0.7)]
for p in ps:
Z += gaussian(X, Y, *p)
```

Visualize the reward space:

```fig = plt.figure()
ax = fig.gca(projection='3d')
ax.plot_surface(X, Y, Z, cmap='plasma')
ax.set_zlim(0,np.max(Z)+2)
plt.show()
```

## Simulation Experiment¶

### Customize Train Function¶

We can define any function with a decorator `@ag.args`, which converts the function to AutoGluon searchable. The `reporter` is used to communicate with AutoGluon search algorithms.

```import autogluon.core as ag

@ag.args(
x=ag.space.Categorical(*list(range(100))),
y=ag.space.Categorical(*list(range(100))),
)
def rl_simulation(args, reporter):
x, y = args.x, args.y
reporter(accuracy=Z[y][x])
```

### Random Search Baseline¶

```random_scheduler = ag.scheduler.FIFOScheduler(rl_simulation,
resource={'num_cpus': 1, 'num_gpus': 0},
num_trials=300,
reward_attr='accuracy')
random_scheduler.run()
random_scheduler.join_jobs()
print('Best config: {}, best reward: {}'.format(random_scheduler.get_best_config(), random_scheduler.get_best_reward()))
```
```HBox(children=(HTML(value=''), FloatProgress(value=0.0, max=300.0), HTML(value='')))
```
```Best config: {'x▁choice': 22, 'y▁choice': 69}, best reward: 0.9961362873852471
```

### Reinforcement Learning¶

```rl_scheduler = ag.scheduler.RLScheduler(rl_simulation,
resource={'num_cpus': 1, 'num_gpus': 0},
num_trials=300,
reward_attr='accuracy',
controller_batch_size=4,
controller_lr=5e-3,
checkpoint='./rl_exp/checkerpoint.ag')
rl_scheduler.run()
rl_scheduler.join_jobs()
print('Best config: {}, best reward: {}'.format(rl_scheduler.get_best_config(), rl_scheduler.get_best_reward()))
```
```100%|██████████| 76/76 [00:19<00:00,  3.84it/s]
```
```Best config: {'x▁choice': 21, 'y▁choice': 74}, best reward: 0.9892484241569526
```

### Compare the Performance¶

Get the result history:

```results_rl = [v[0]['accuracy'] for v in rl_scheduler.training_history.values()]
results_random = [v[0]['accuracy'] for v in random_scheduler.training_history.values()]
```

Average result every 10 trials:

```import statistics
results1 = [statistics.mean(results_random[i:i+10]) for i in range(0, len(results_random), 10)]
results2 = [statistics.mean(results_rl[i:i+10]) for i in range(0, len(results_rl), 10)]
```

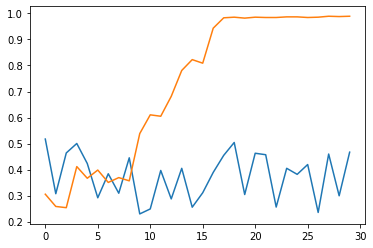

Plot the results:

```plt.plot(range(len(results1)), results1, range(len(results2)), results2)
```
```[<matplotlib.lines.Line2D at 0x7f6bd5f2f8d0>,
<matplotlib.lines.Line2D at 0x7f6bd604ba90>]
```
